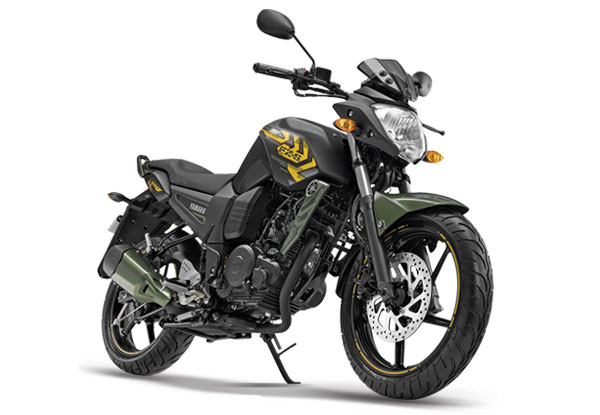

FZ-S overflows with dynamism and originality. The running performance brims with thrust that overpowers all others with its unprecedented torque. Dubbed as “Lord of the Streets,” FZ-S is designed and engineered with the potential for active and even aggressive enjoyment of around-town street riding and styling that brings pride of ownership and makes any rider look like they own the road. With the Triple Macho concept projecting the Muscular silhouette, muscular body parts and muscular chassis, FZ -S is an object which reflects visual expression of performance on the streets.

Specifications
Overall Length × Width × Height
2,075mm ×770mm ×1,090mm
Seat height
790mm
Wheelbase
1,334mm
Minimum ground clearance
160mm
Kerb weight
135kg
Engine type
Air-cooled, 4-stroke,SOHC, 2-valve
Cylinder Layout
Forward-inclined Single cylinder
Displacement
153.0 cc
Bore × Stroke
58.0 × 57.9 mm
Compression ratio
9.5:1
Maximum output
14PS/7500 rpm
Maximum torque
13.6 Nm/6000 rpm
Starting Method
Electric & Kick start
Lubrication type
Wet Sump
Fuel tank volume
12 litres
Fuel Supply
Carburetor
Battery
12 V, 5.0 AH (10H)
Headlight
12V, 35/35W
Primary / Secondary reduction ratio
3.409/2.857
Clutch type
Wet, multiple-disc
Transmission type
Constant mesh 5-speed
Gear ratios
1st=2.714,2nd=1.789,3rd=1.318,4th=1.045,5th=0.875
Frame type
Diamond
Caster / trail
25 degree/ 101 mm
Tyre size (front/rear)
100/80-17 / 140/60-R17
Brake type(front/rear)
disc / drum
Suspension (front/rear)
Telescopic/ Monocross
