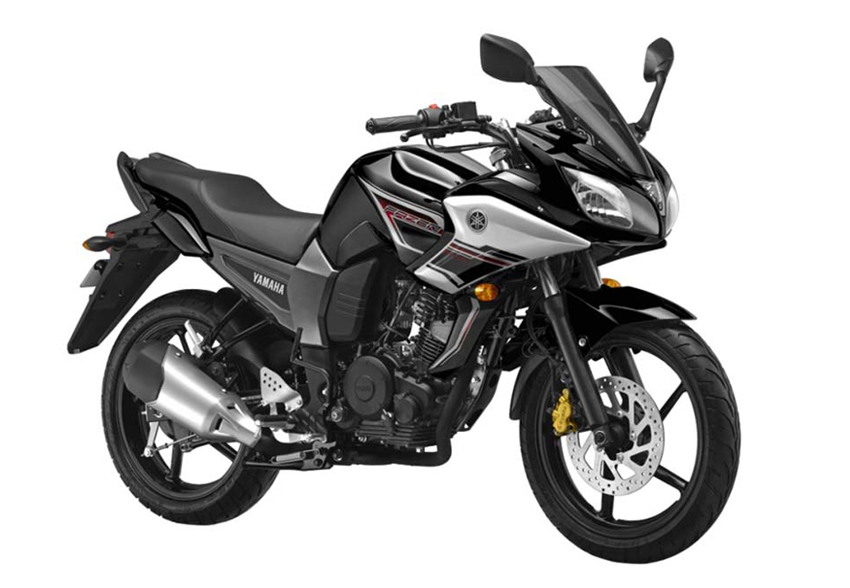

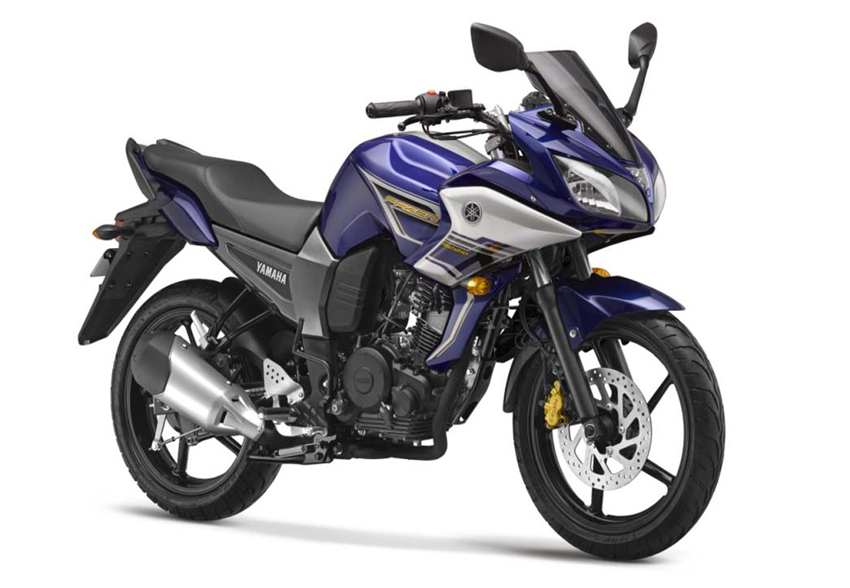

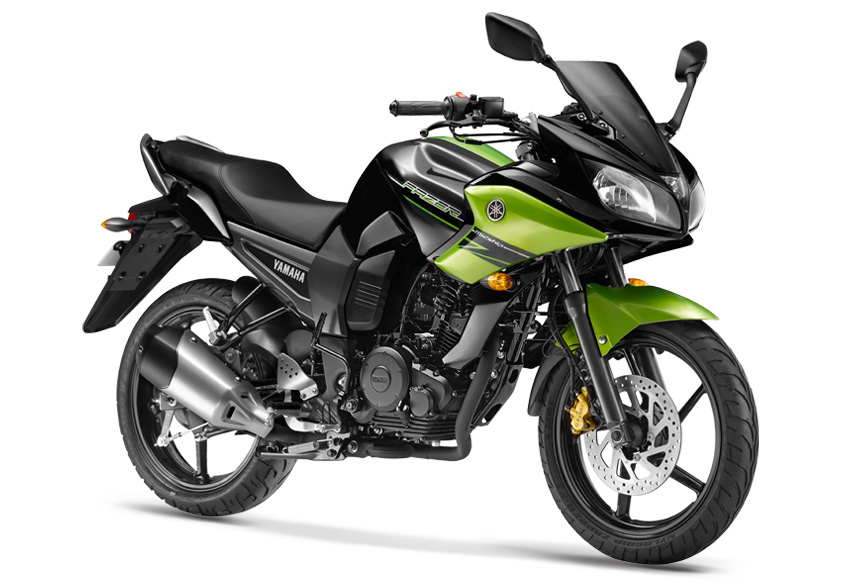

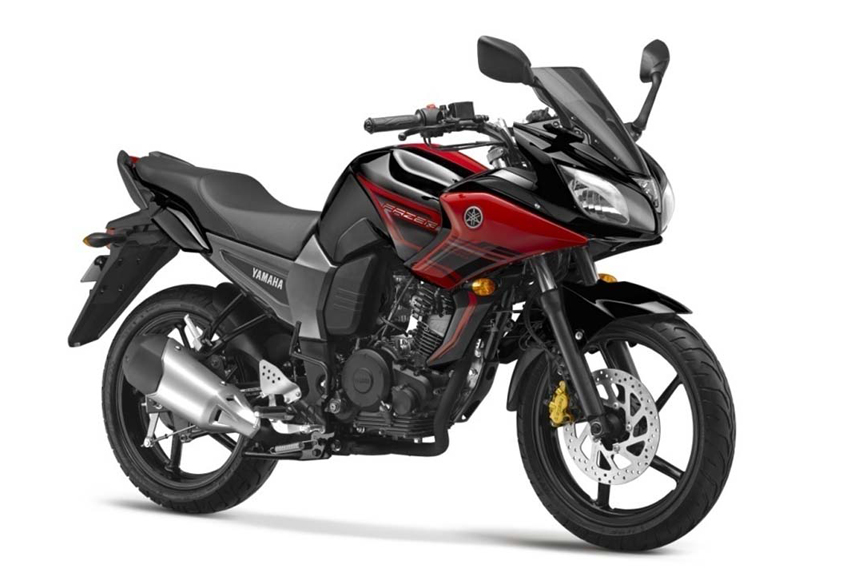

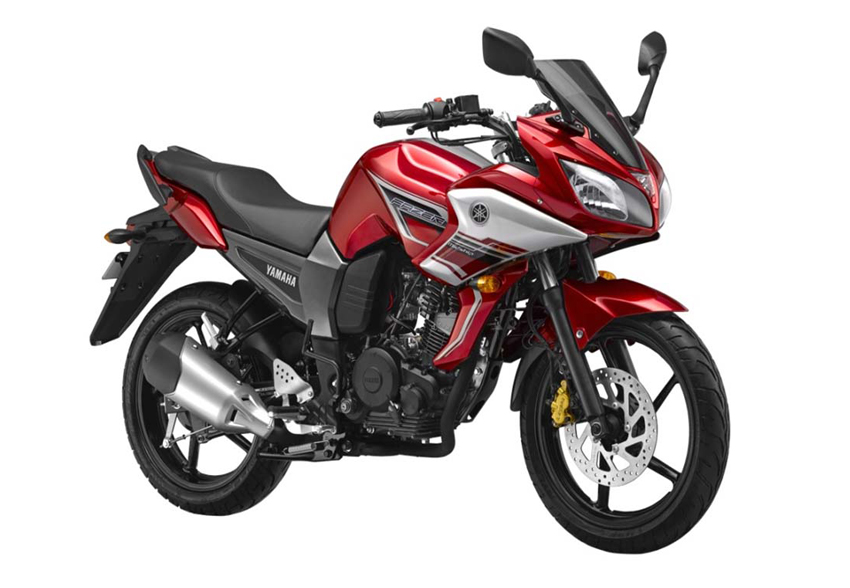

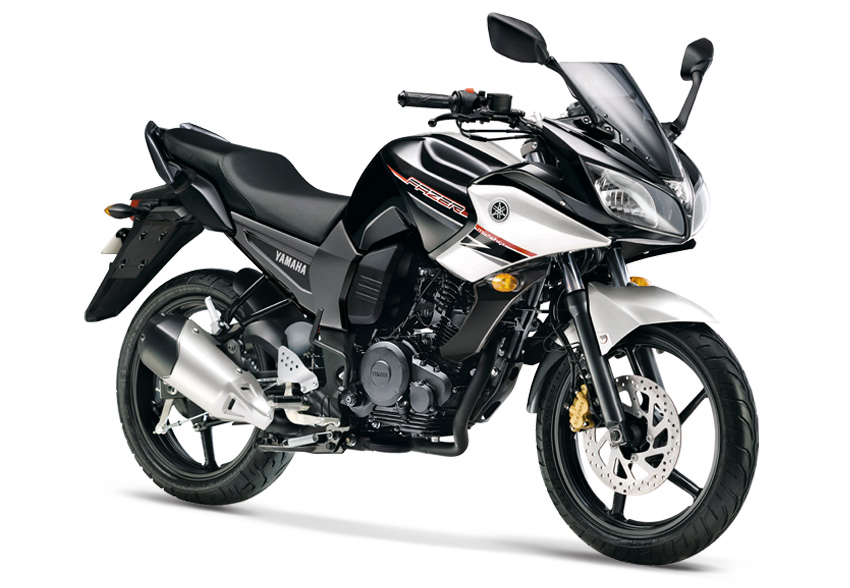

  • Colour
  • Comparison
  • FAQ

The Fazer, gets its DNA from the global Fazer series known for their sports touring, awesome looks. It has a “Look-at-me” appeal with the triple macho design concept giving it a concentrated form with excellent ergonomics. It has the beautifully contoured color – coordinated aerodynamic cowling to keep the wind blast at bay. With its comfortable riding position and seat the rider can enjoy a week end getaway or head off on a touring holiday.

Specifications
Overall Length × Width × Height
2,075mm × 761mm × 1,119mm
Seat height
790mm
Wheelbase
1,334mm
Minimum ground clearance
160mm
Kerb weight
141kg
Engine type
Air-cooled, 4-stroke,SOHC, 2-valve
Cylinder Layout
Forward-inclined Single cylinder
Displacement
153.0 cc
Bore × Stroke
58.0 × 57.9 mm
Compression ratio
9.5:1
Maximum output
14PS/7500 rpm
Maximum torque
13.6 Nm/6000 rpm
Starting Method
Electric & Kick start
Lubrication type
Wet Sump
Fuel tank volume
12 litres
Fuel Supply
Carburetor
Battery
12 V, 5.0 AH (10H)
Headlight
12V, 35/35W
Primary / Secondary reduction ratio
3.409/2.857
Clutch type
Wet, multiple-disc
Transmission type
Constant mesh 5-speed
Gear ratios
1st=2.714, 2nd=1.789, 3rd=1.318, 4th=1.045, 5th=0.875
Frame type
Diamond
Caster / trail
25 degree/ 101 mm
Tyre size (front/rear)
100/80-17 / 140/60-R17
Brake type(front/rear)
disc / drum
Suspension (front/rear)
Telescopic/ Monocross

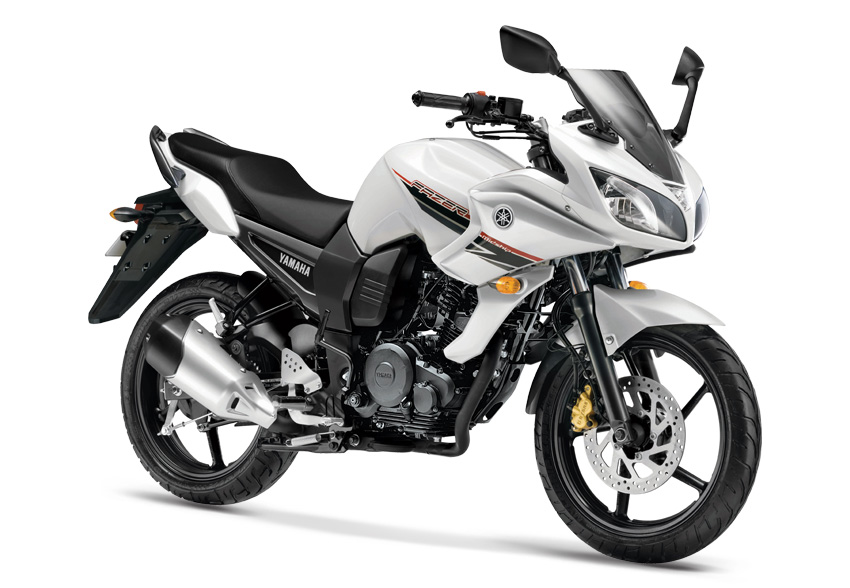

Image 2
